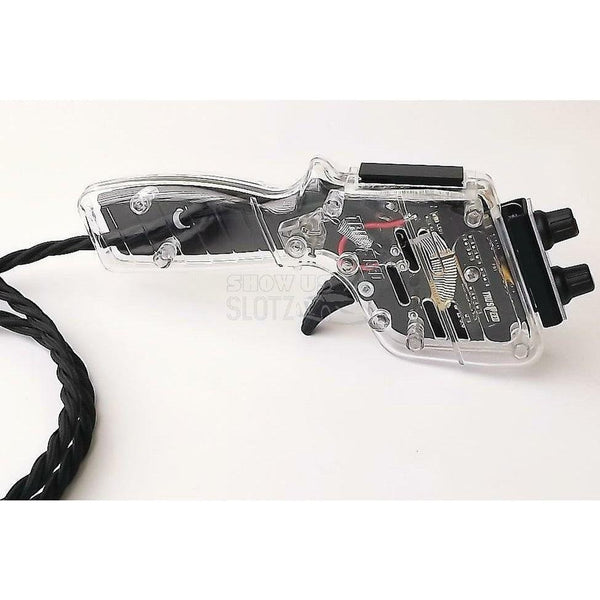

TruSpeed BP II Analogue Controllers.
Suitable for Positively wired Ninco Tracks.
Brake adjustment (with automatic HOLD)
- Sensitivity adjustment. (with automatic CURVE)
- Additional Pre-set pot for sensitivity range adjustment from 2020 onwards
- Adjustable trigger return spring tension
- Single and double finger trigger supplied. (easy clip on change without tools)
- POSITIVE track wiring.
- Running current 3A. Maximum current 6A peaks.
Note: Check the spec of what you are buying, if you need Negative set up, let us know and we can arrange.

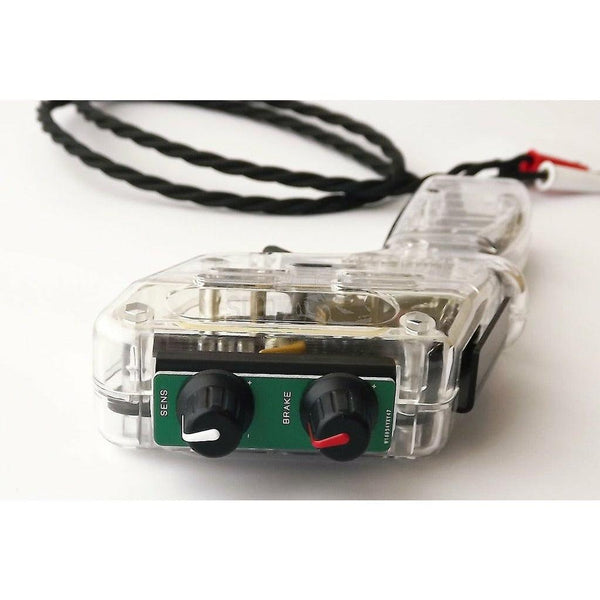

Simple intuitive controls on the BP II make it easy to use and quick to adapt to your racing style, car, and track conditions.
A single rotary control sets the braking strength and has a built-in hold circuit to release the brakes once the car has slowed to a speed relative to the amount of braking you have selected. The useful feature of this design is the that motor drives the brake circuit in such a way that the faster the car is going, the harder the brakes are applied. As the car slows, the brakes are gradually released to give very balanced and predictable control. The brake and hold remain balanced to leave you free to race confidently.
This adjusts the trigger wiper sensitivity to enable you to set the controller feel for any car or track condition.
The small blue pre-set potentiometer on the board allows adjustment of the sensitivity range. Turn anticlockwise to decrease sensitivity.
Adjustable Spring Tension:
Easy adjustment with a cross head screwdriver to set the spring tension. You will see the little tensioner cam moving to pre-tension the spring.
Trigger single and double finger sections:
The controller is supplied with the single finger section fitted and the double finger option in a little packet to fit as required.
